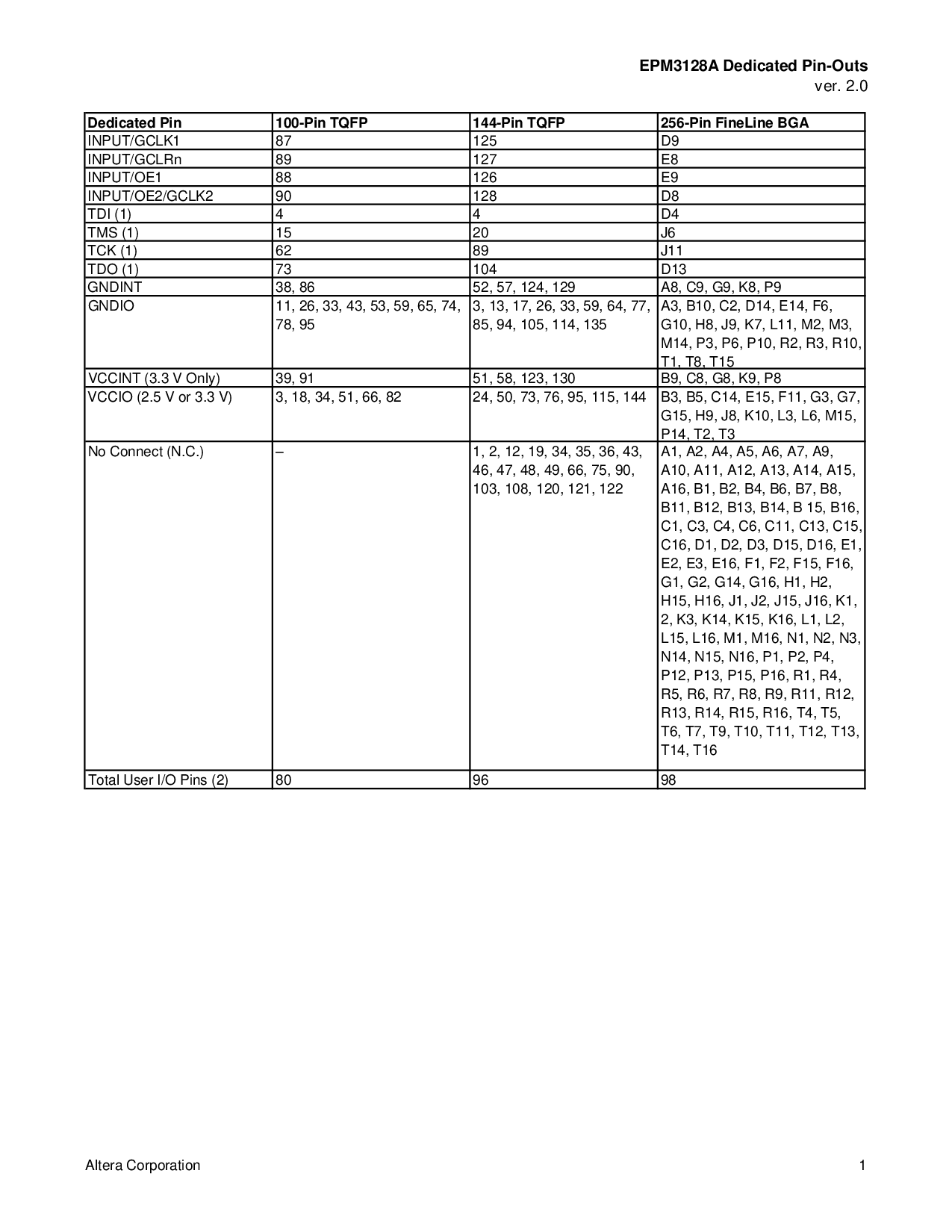

EPM3128A 专用 管脚-出场次数
ver. 2.0
专用 管脚 100-管脚 tqfp 144-管脚 tqfp 256-管脚 fineline bga
输入/gclk1 87 125 D9
输入/gclrn 89 127 E8
输入/oe1 88 126 E9
输入/oe2/gclk2 90 128 D8
tdi (1) 4 4 D4
tms (1) 15 20 J6
tck (1) 62 89 J11
tdo (1) 73 104 D13
GNDIN
t 38, 86 52, 57, 124, 129 a8, c9, g9, k8, p9
GNDIO 11, 26, 33, 43, 53, 59, 65, 74,
78, 95
3, 13, 17, 26, 33, 59, 64, 77,
85, 94, 105, 114, 135
a3, b10, c2, d14, e14, f6,
g10, h8, j9, k7, l11, m2, m3,
m14, p3, p6, p10, r2, r3, r10,
T1
,T8, t15
vccint (3.3 v onl
y) 39, 91 51, 58, 123, 130 b9, c8, g8, k9, p8
vccio (2.5 v 或 3.3 v) 3, 18, 34, 51, 66, 82 24, 50, 73, 76, 95, 115, 144 b3, b5, c14, e15, f11, g3, g7,
g15, h9, j8, k10, l3, l6, m15,
P14
,T2, t3
否 连接 (n.c.) – 1, 2, 12, 19, 34, 35, 36, 43,
46, 47, 48, 49, 66, 75, 90,
103, 108, 120, 121, 122
a1, a2, a4, a5, a6, a7, a9,
a10, a11, a12, a13, a14, a15,
a16, b1, b2, b4, b6, b7, b8,
b11, b12, b13, b14, b 15, b16,
c1, c3, c4, c6, c11, c13, c15,
c16, d1, d2, d3, d15, d16, e1,
e2, e3, e16, f1, f2, f15, f16,
g1, g2, g14, g16, h1, h2,
h15, h16, j1, j2, j15, j16, k1,
2, k3, k14, k15, k16, l1, l2,
l15, l16, m1, m16, n1, n2, n3,
n14, n15, n16, p1, p2, p4,
p12, p13, p15, p16, r1, r4,
r5, r6, r7, r8, r9, r11, r12,
r13, r14, r15, r16, t4, t5,
t6, t7, t9, t10, t11, t12, t13,
t14, t16
合计 用户 我/o 针脚 (2) 80 96 98
altera 公司 1
: 点此下载
